Full Custom Build / Kitchen Sheet A-001  /  Cover

Utility
to Kitchen

Before this project, the room was put together with an industrial sink and industrial counters, combined with whatever random cabinets and countertops were on hand, no real kitchen at all. The kitchen "island" was an old entertainment center with a painted plywood board laid on top to work as a counter. This is what it took to build an actual kitchen into that space, designed around how the client really cooks, not just a catalog layout.

ASSESS → DESIGN → BUILD
Project
Utility Space to Kitchen
Drawn By
Kelly Borrello
Design Tool
2020 Design
Documented In
2020 Design

Starting Point
Industrial pieces, random cabinets, no real kitchen
Brief
Design around how she actually cooks
Status
Installing now
01

The Project

From nothing to a real kitchen
01 · Started With Nothing

Not A Kitchen Yet

An industrial sink and industrial counters, combined with whatever random cabinets and countertops were on hand, that was the whole kitchen. The island was an old entertainment center with a painted plywood board laid on top to work as a counter.

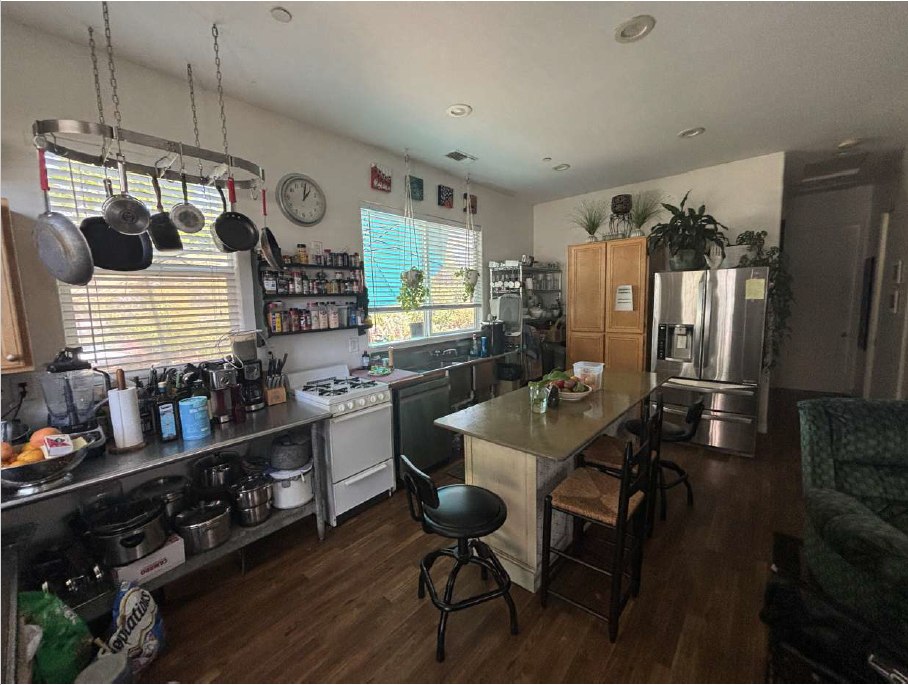

Original utility kitchen with industrial prep table, gas range, pot rack, and entertainment center used as an island
02 · Designed It

Storage That Works

Every base cabinet uses drawers or pull-out accessories instead of standard shelves, so nothing gets lost or hard to reach in the back. The pantry uses pull-out drawers for easy access, and a lazy susan in a separate wall cabinet solves corner storage. The existing pot rack stays right where it was, in front of a window where a wall cabinet was never going to work anyway.

Render of the finished kitchen with island and seating
03 · Built to Last

Finished on Every Side

The island has decorative doors field-installed on the back so it looks finished from every angle, not just the front. Currently mid-install, after photos coming once it's complete.

Photo Coming Soon
02

Design Board

Materials & selections
Dream kitchen mood board showing cabinet finish, quartz countertop, hexagon tile, cabinet hardware, and corner pantry pull-outs
DREAM KITCHENSELECTIONS
03

Final Design

2020 Design renders
Render of the finished kitchen with island, seating, and hood
MAIN VIEWRENDER
Overhead top-down render of the full kitchen layout
FULL LAYOUTTOP VIEW
Render of the corner cabinet, pot rack in front of the window, and pull-out organizers near the range
STORAGE DETAILVIEW 1
Render of the tall pantry with pull-out drawers next to the refrigerator
PANTRY STORAGEVIEW 2
04

Sheet Index

Documentation complete
SheetTitleScaleStatus
A-101 Floor Plan No Scale Issued
A-201 Elevations No Scale Issued
A-301 Island Detail No Scale Issued
A-302 Corner Cabinet Detail No Scale Issued
A-401 Tile Placement No Scale Issued

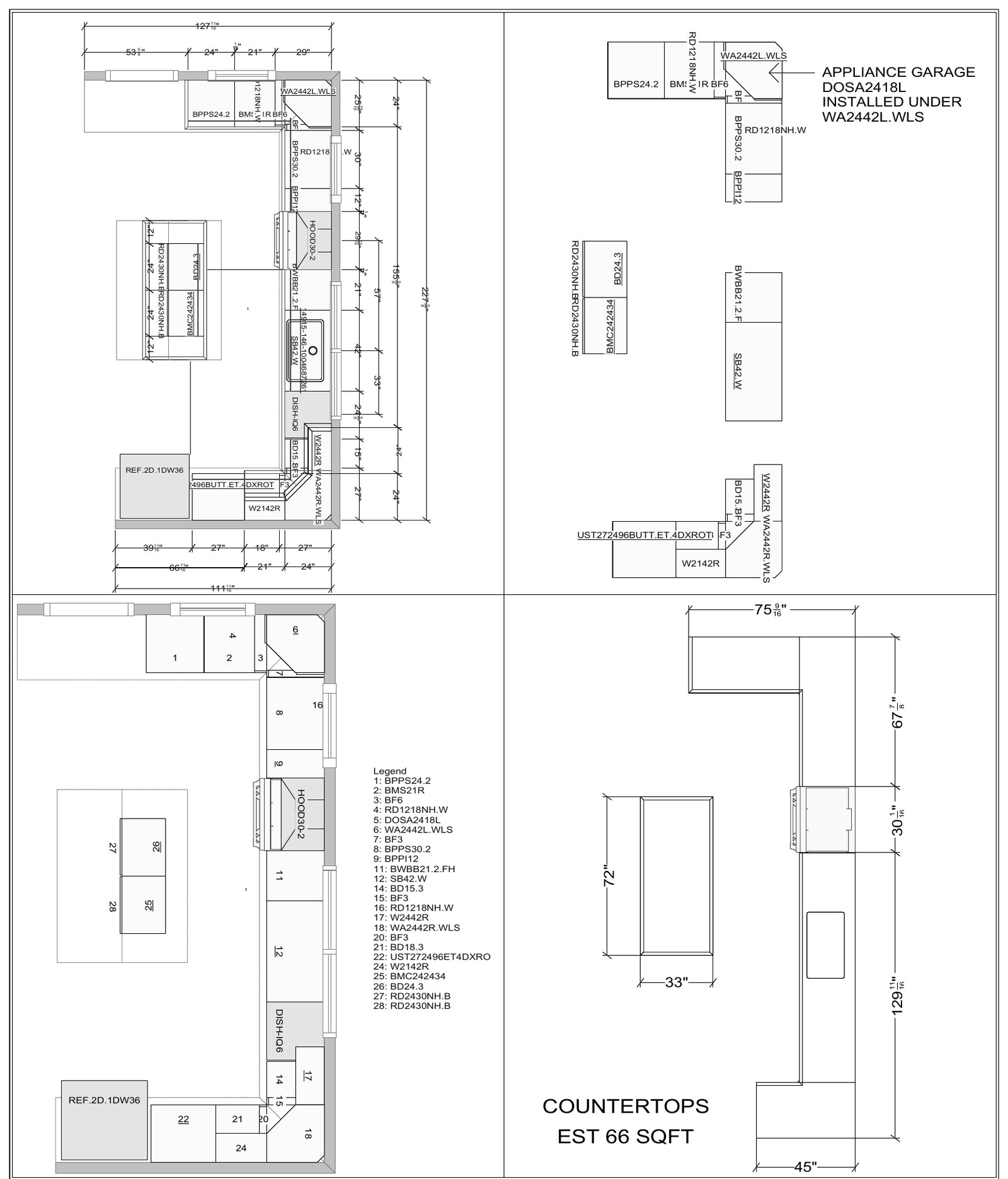

Floor plan with full dimension strings and cabinet codes
FLOOR PLANA-101

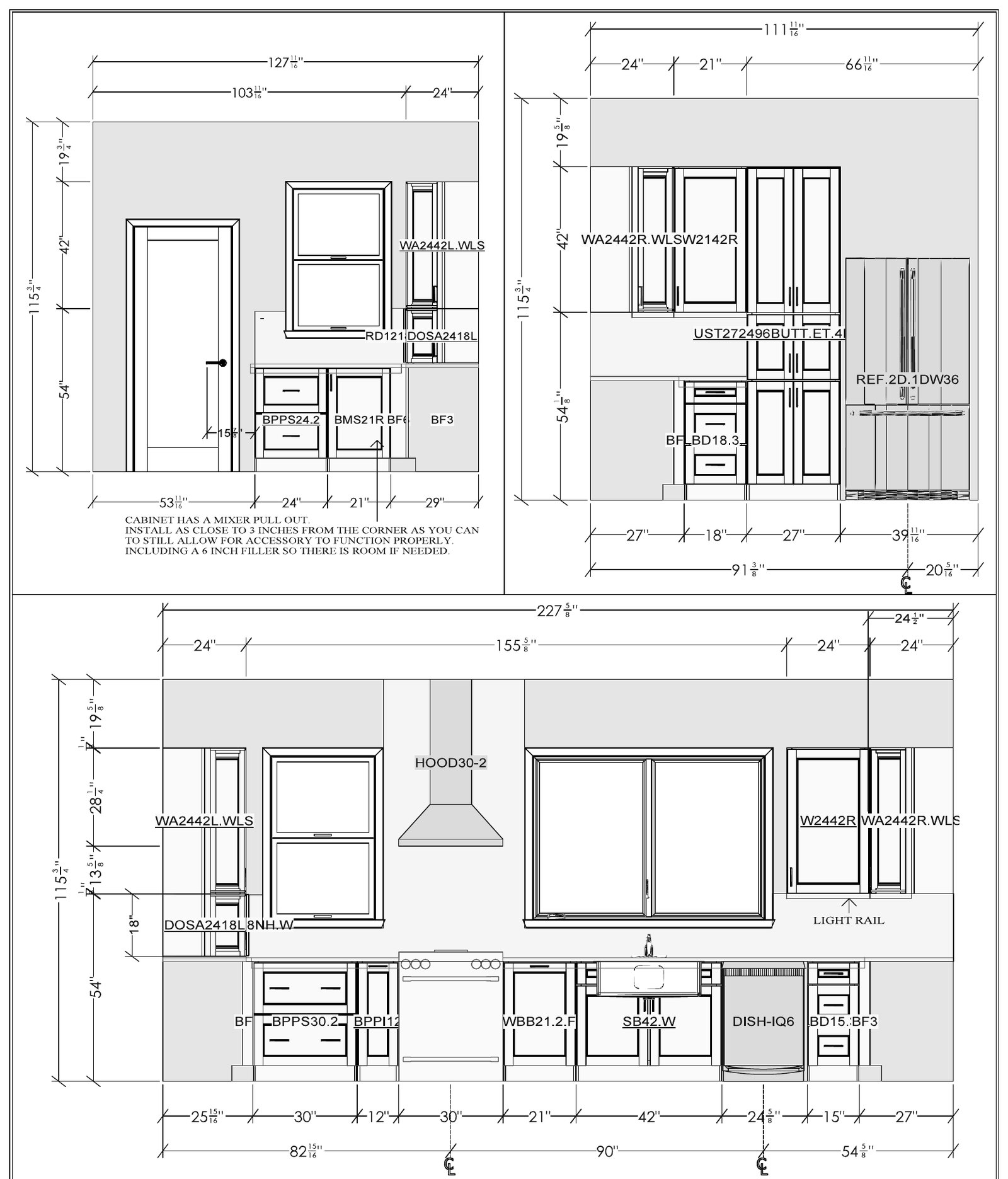

Kitchen elevations with cabinet codes and mixer pull-out note
ELEVATIONSA-201

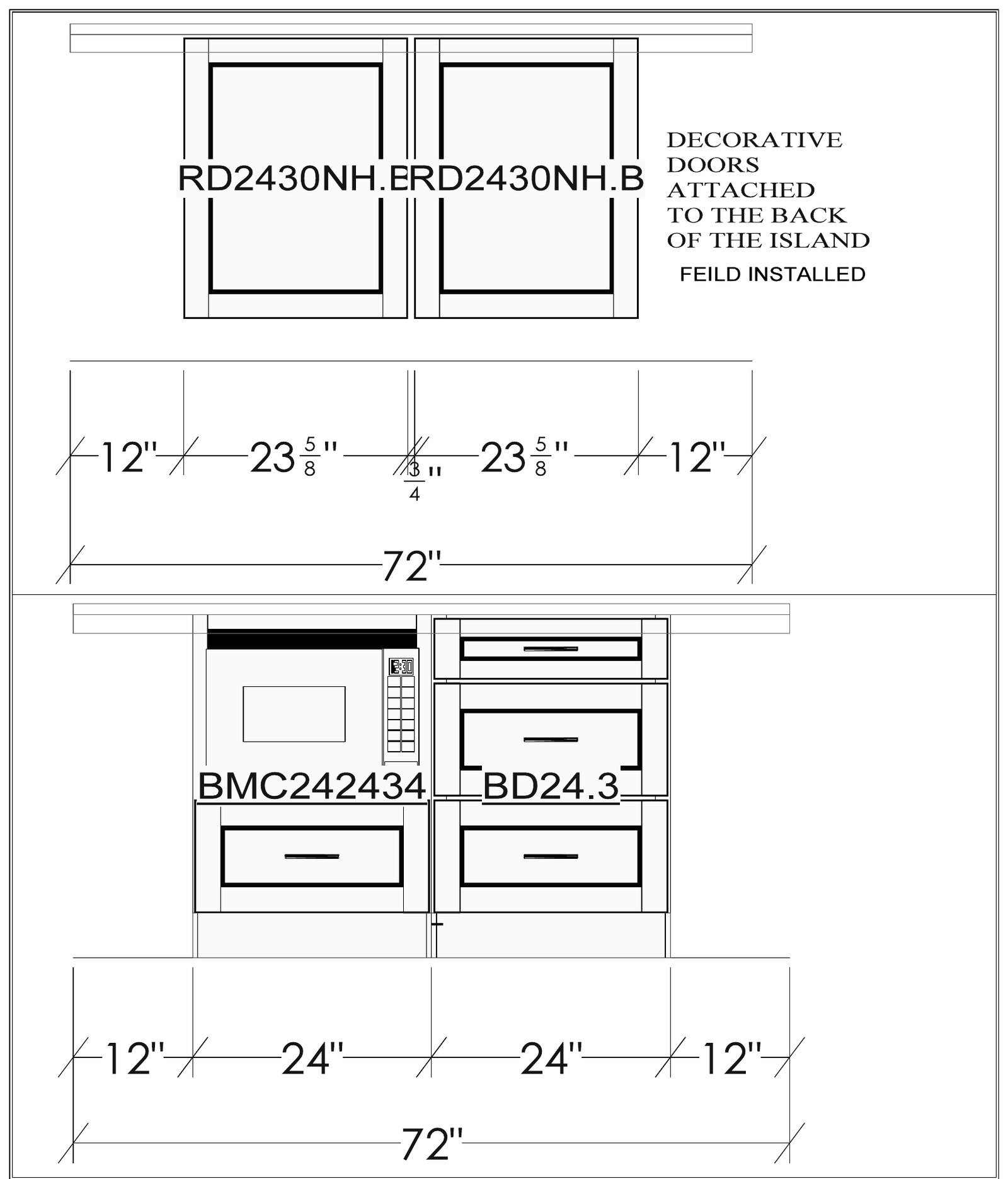

Island detail with decorative door dimensions
ISLAND DETAILA-301

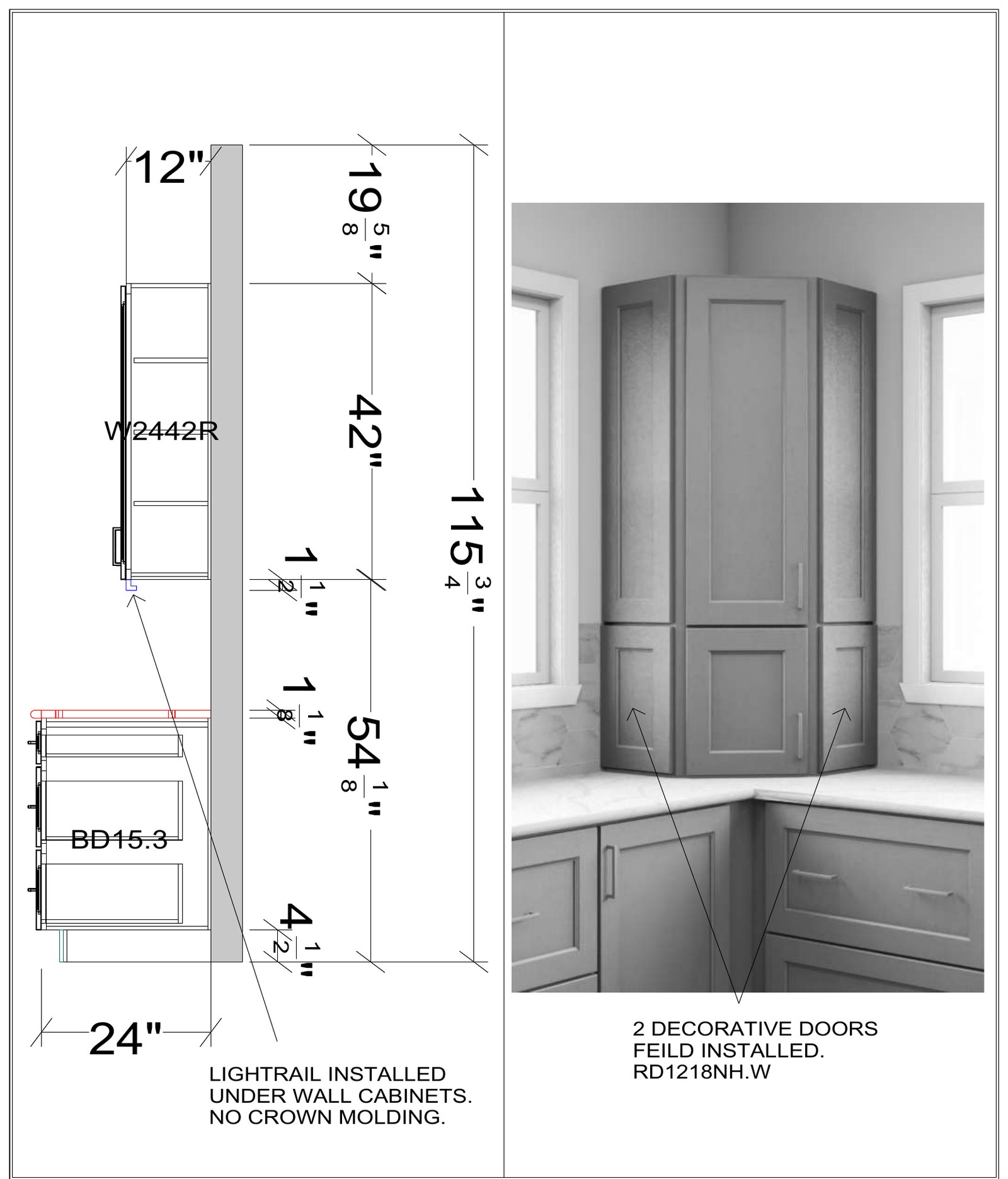

Corner cabinet detail with light rail note and photo reference
CORNER CABINETA-302

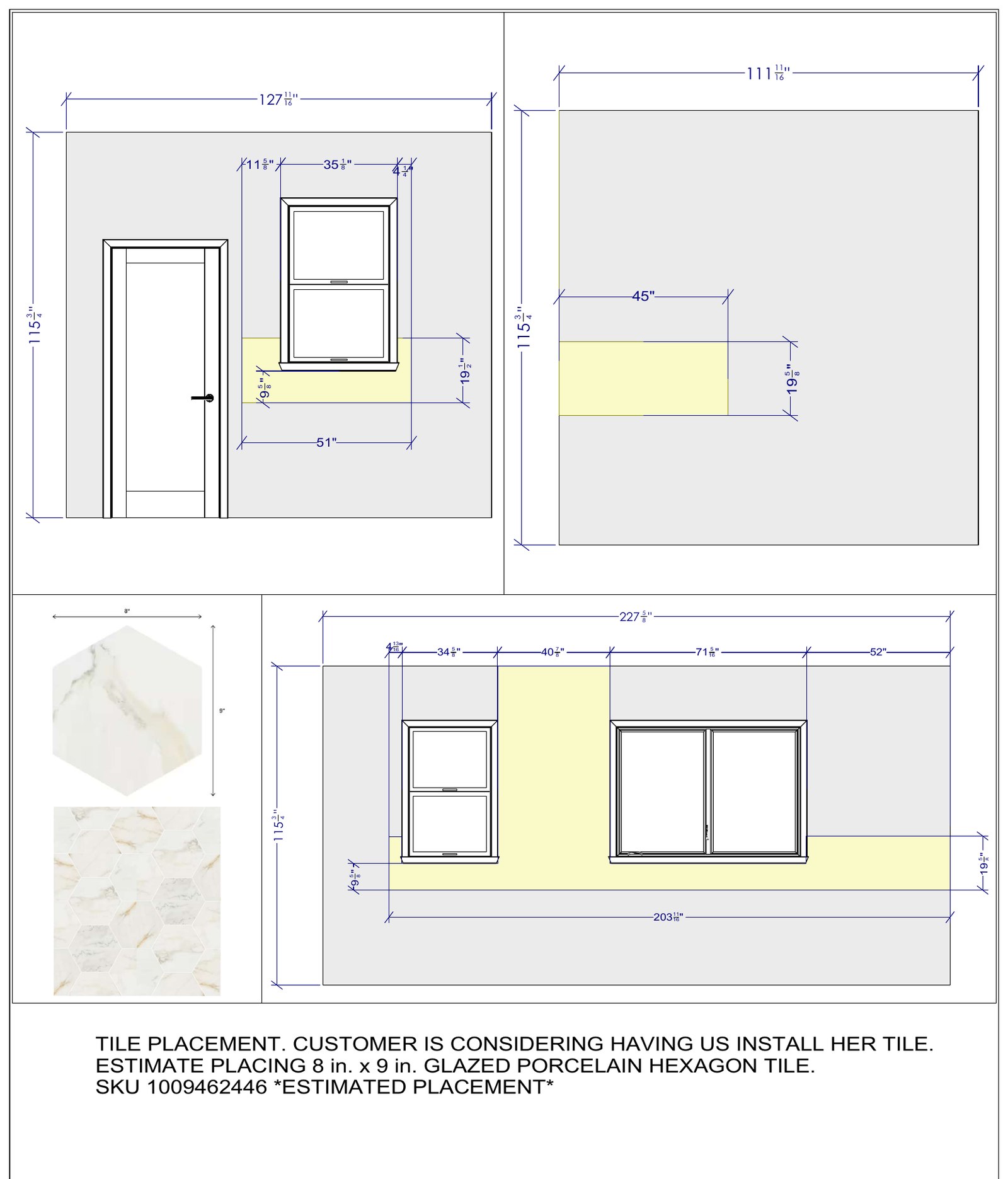

Tile placement plan with hexagon tile sample
TILE PLACEMENTA-401
05

Skills Shown

On this project
01
2020 Design space planning
02
Full kitchen build from an unfinished space
03
Accessory-driven cabinet specification
04
Corner storage and pull-out systems
05
Decorative panel and finish detailing
06
Tile placement and material takeoff
07
Client habit-driven design decisions
Prepared By
Kelly Borrello
CAD Drafter · Rhino 3D + AutoCAD
